Cocok untuk senapan PCP anda, Mudah, Praktis, Awet dan Terjangkau
- Sudah Termasuk Selang
- Bonus Sperepart Sil atau Tas
IDR 2,600,000,-
WWW.SENAPANANGIN.US
Teropong Medan Bresser 10x50
Click Untuk Membesarkan Gambar
Teropong ini di peruntukkan bagi yang sangat serius dalam kemampuan alat pengintai, suka berpetualang, mendaki gunung, mancing, hunting, ke hutan, pantai atau ke alam bebas dan ngeliat keindahan di tempat jauh ataupun menyaksikan acara olah raga di lapangan terbuka yg luas tentunya.....
Bresser10x50 memiliki kemampuan jarak pandang sampai 1000mtr dgn ukuran pembesaran 10kali, dengan hasil gambar yang jernih dan tajam, sehingga jenis teropong ini sangat diminati oleh para petualang.....Selamat berpetualang......
Oh ya ukuran 10x50 artinya: object akan dibesarkan sampai 10kali dan objective diameternya (diameter lensa depan) adalah 50mm atau 5cm.
Bentuknya besar (panjang 16cm, lebar bag ujung 18.5cm, lebar bag pangkal 10.5cm, beratnya 920gram), di lengkapi dgn tas agar mudah di bawa-bawa.
Bresser10x50 sangat jernih dan tajam karna menggunakan lensa BaK4 Long Eye Relief (LE)
KELENGKAPAN:
* Tas untuk menyimpan teropong dan bisa dislempang
* Penutup lensa depan dan belakang
* Manual
* Made In German
PENTING:
* Jangan meneropong Matahari, bisa merusak retina mata
Harga Rp.600.000.-
Scopes
Tropong Medan Bresser 10x50
Jarak pandang 1000 meter, lensa bening, pandangan luas, cocok untuk mengamati buruan di celah-celah dedaunan yg sulit dilihat dengan scopes senapan biasa
Harga Promo Rp.500.000.-
BSA 3-12x40 AOMM
scopes BSA seri Hunting, pengaturan scopes mudah krn sudah menggunakan sistem drum, tutup lensa dari logam, paket termasuk monting.
Harga Rp.750.000.-
Bushnell Trophy 3-9x40
Mede In Philipina "ada kartu registrasi"
Harga Rp.2.400.000.-

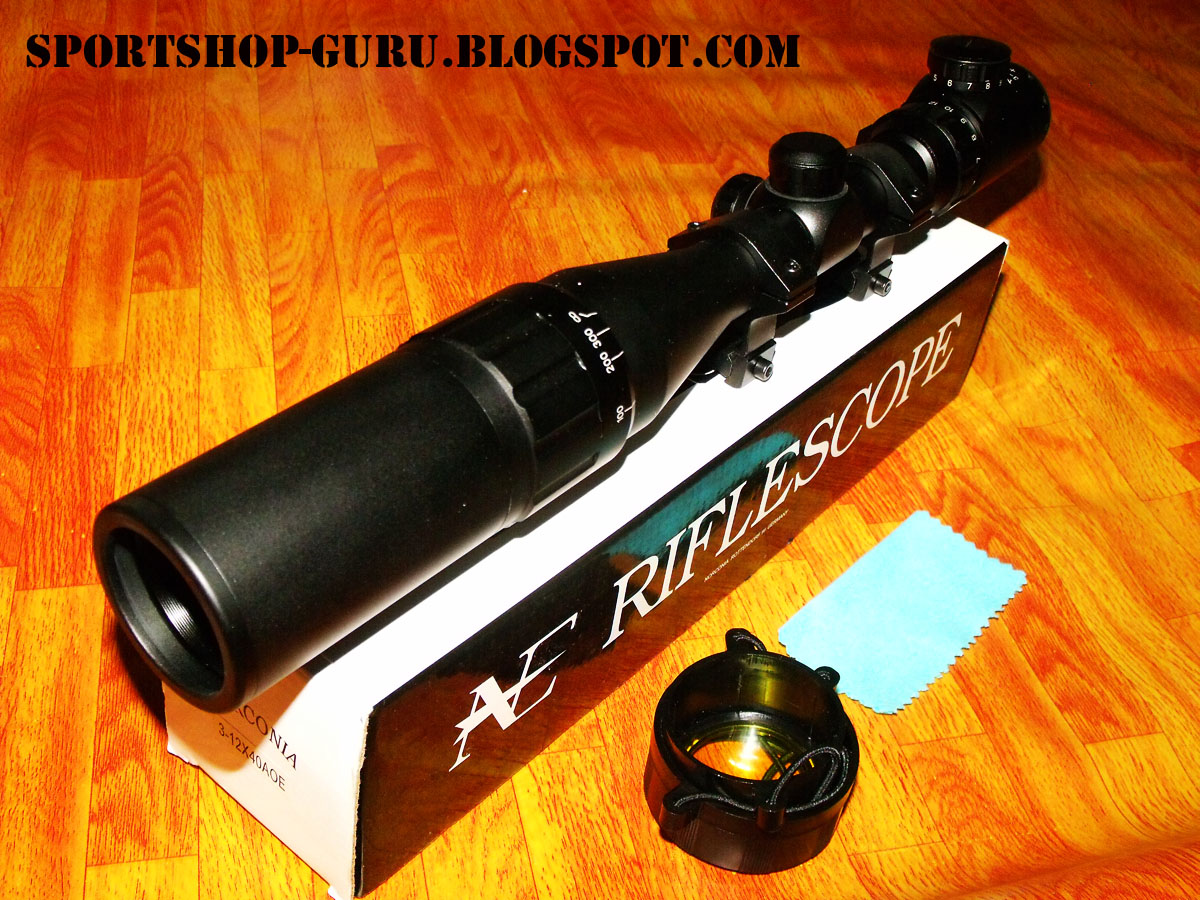

Norconia 3-12x40 AOE
Harga Rp.525.000.-
Bushnell 3-9x40 E Banner
Harga Rp.475.000.-
Bushnell 3-9x56 E Banner
Harga Rp.625.000.-
New Sniper 3-9x40 AEG
Harga Rp.525.000.-
BSA 3-12x40 AOE IR
Harga Rp.600.000.-
BSA 3-9x40 AOE IR
Harga Rp.590.000.-
Harga Rp.590.000.-
BSA 4x32
Harga Rp.450.000.-
BSA 3-9x40
Harga Rp.525.000.-
Harga Rp.450.000.-
BSA 3-9x40
Harga Rp.525.000.-
BSA Mildot 4x32
Harga Rp.500.000.-
Leupold Mark M1 (3-10 x 40 AOE)
Harga Rp.1.200.000.-
Leupold Mark M4 (3-12 x 40 AOE)
Rp.1.300.000.-
BSA Stealth STS 6-24 x 44 IR
Harga Rp.2.100.000.
Reddot 2x20 E
Harga Rp.180.000.
Benjamin Innovation 4x20
Harga Rp.100.000.
Norconia 3-9x50 AOE + SP
Harga Rp.800.000.
Benjamin Innovation 3-9x40 E Ringgik
Harga Rp.500.000
Benjamin Innovation 3-9x50 IR + SP
Harga Rp.800.000.
Bushnell Mildot 3-9x40 E
Harga Rp.500.000.
Norconia 3-9x40
Harga Rp.450.000
Vizion 3-9x40 Mildot
Harga Rp.550.000.
Zos 3-9x50
Harga Rp.400.000.
BSA SCOPES
- BSA 4x32 IDR 450.000.
- BSA 3-9x40 IDR 525.000.
- BSA 3-9x40 AOE IR IDR 950.000.
- BSA 3-12x40 AOE IR IDR 600.000.
- BSA 3-9x50e IDR 600.000.
Monting 6 Titik Bushnell
Monting dengan kekuatan lebih baik dari monting standart, menjamin kekokohan scopes
IDR 125,000,-
IDR 125,000,-
Cara Menggunakan Scopes Mildot
User Guide
This guide is intended to provide the user of a Mil-Dot equipped optic with information on what the reticle is used for, the basics of its use and how to train yourself to better employ and realize the full potential of this reticle.How to use Mil-Dots
I am sure that most of you have skipped right to this page, as you want to jump ahead and get to using the optic. I have to HIGHLY recommend that you at least look at the diagrams and values associated with the reticle patterns listed under specifications. All right then, lets get to it. The vast majority of users will employ the optic primarily to estimate range, some will also use it to hold for wind and some will use it to calculate and hold leads on moving targets. I will address the latter two uses further into this instruction.Range Estimation
There are two components to range estimation; the mechanics and the math. The mechanics encompass the physical methods of placing the reticle on the target and reading the reticle. The math is taking the "mils read" and converting it to a usable range.The Mechanics
This is definitely the hardest part of range estimation using the mil dot reticle. It requires the shooter/use to place the reticle on the target (of known size), hold it long enough to accurately read it (depending how accurate you are trying to be to the nearest .1 mil).
The MOST important aspect of using the mil dot reticle for range estimation is a STEADY HOLD on the target. As you use the reticle, you will realize just how hard it really is to hold the reticle on the target. Most shooters will tend to move the reticle in the direction that they are reading, however many shooters will do the opposite. The shooter must practice shooting positions to determine what is best. All but the best shooters are able to hold a rifle/optic steady enough without a rest or support to accurately read the reticle. Shooters should ALWAYS seek to use some form of rest, bipod, sling etc. to develop a STABLE, DURABLE, and SUSTAINABLE shooting platform. When attempting to estimate range of living (for now) objects, it is imperative that the shooter be practiced and be able to read the scale quickly and accurately because they never stay in one place very long so. In order to develop this skill the shooter must practice, practice and practice (we will cover practice techniques later) using the reticle against targets at different ranges and of different sizes. Additionally the shooter should try all of the methods to determine which he/she prefers and the advantages/disadvantages of each.
Reading the Reticle
In order to use the reticle you must be able to read it. As mentioned elsewhere in this manual you must be able to read the reticle to the nearest .1 mil. Please refer to the diagrams depicted in SPECIFICATIONS for a break down of the specific reticles. Here is a generic break down of a mil dot reticle:
The picture is not to scale but provided to illuminate the discussion. Notice that what is depicted is not to the nearest .1 mil. To do so to scale the drawing would be too crowded to be useful. As depicted the .25, .5 and .75 mil are usually easy to find, the user must find the .3, .4, .6, etc locations. Keep in mind that although there is not an exact point annotated on the reticle, it behooves the shooter to learn to "guesstimate" where these points on the reticle are to lessen the range estimation error.Regardless of which method you are going to use, you MUST know the target size (you will see this again). For the sake of this document, we will use the following;
You will notice that Gordy the Ground Hog is 10 inches tall when he stands, which in your world is the average ground hog height.
Once you have the target size you have to decide on which method to use in order to obtain a mil reading. Here are some of the more popular methods;
Cross Hair Method
As the name applies, this method uses the center of the cross hair placed at a point on the target then the reticle is read up, down, left or right. Keep in mind that the cross hair can be placed on any point and the target and mils read from there. This is the most widely used method because it is the most natural, placing the cross hairs on the target.Heavy Post Method
Similar to the cross hair method, the heavy post located on any of the four sides (top, bottom, left and right) is placed onto a base line and then mils read from there. The benefit of this method is that the heavy post is easier for most people to hold on a distant target (especially older shooters).Mil-Dot Method
Again, like the other two methods, a distinct aiming point is placed on the target and mils read from there. In this case, a dot is use verses the cross hair or a heavy post. This method is favored by some because the dots are easy to place on the target and for some easier to hold. One thing to keep in mind is that you are already into the mil scale when you place the reticle on the target and you must factor this into your calculations. Again remember, you MUST begin reading at the BASE DOT or factor its value is you begin elsewhere (i.e. if you begin reading from the top of the post as depicted above the reading would be 3.4 mils verses if you begin at the base dot which would be 2.4 mil and would be CORRECT).The Math
There are two ways that you can derive range using a mil dot equipped optic, to manually compute it either by long hand or by using an electronic calculator OR to use one of several shooter aids that are on the market. The most notable shooter aid available is the Mil Dot Master™ a slide rule type device, which provides the shooter with the ability to line up "mils read" with the target size in inches and gives you the range to the target. The other "device" is what is termed a "cheat sheet" and resembles a spreadsheet depicting mils read on normally the left side and target sizes across the top. By intersecting the two, you arrive at the range to the target.While these devices are definitely handy, anyone using this reticle should know the math associated with it so that when they forget the device or cheat sheet they can still use the reticle to its maximum ability. Therefore, we will begin with the math (long way) of doing this.
Calculations
Using a mil dot reticle is a mathematical proposition requiring some calculating in order to arrive at a solution. For range estimation problems there are three components; target size (Tz), mils read (m) and range (R). You MUST have two of the three to arrive at the third component. Most commonly, the shooter will know the target size and by using the reticle will arrive at mils read, here are the formulas;Target size (in yards) x 1000 / Mils read = yards to target
Target size (in meters) x 1000 / Mils read = meters to targetIn short: Tz / R = m
I am sure you notice that target size is required in yards or meters. Most of the time you know your target in inches (varmints), therefore the below formulas will help you convert and arrive at a usable range. The first formula for each is the easiest but not the most precise. Try them all out and decide for yourself what is best;
I am sure you notice that target size is required in yards or meters. Most of the time you know your target in inches (varmints), therefore the below formulas will help you convert and arrive at a usable range. The first formula for each is the easiest but not the most precise. Try them all out and decide for yourself what is best;
For Meters:
- Object size (in) divided by 39 x 1000 divided by mils read
- Object size (in) x 25.4 divided by mils read
- Object size (in) divided by 36 x 1000 divided by mils read
- Object size (in) x 27.77 divided by mils read
- 10 inches divided by 36 x 1000 divided by .6 equals 462 yards OR
- 10 inches x 27.77 divided by .6 equals 462 yards OR
- 10 inches divided by 39 x 1000 divided by .6 equals 427 meters OR
- 10 inches x 25.4 divided by .6 equals 423 meters
Shooter Aids
As mentioned above, you can also enlist the help of a shooter aid such as the Mil Dot Master™ (MDM) that will take the math out of this effort and provide you with an quick firing solution. The MDM is easy to use and will offer the shooter with more options than most will ever need (such as slant range corrections). For those interested in the MDM, I encourage you to visit their web site at www.mildot.com where you can use a virtual example. One lat word on the MDM, you MUST read the instructions and understand them for it to work, it is NOT magic and will not do all the work for you.Another form of shooter aide is what is termed a "cheat sheet". This is a spreadsheet like form that shows mils read on one side and target size across the top. This is a simplified version of the MDM but does not require any sliding or moving of anything. Down side is that it only does one thing, provide range from target size and mils read. I will provide a larger version of this diagram at the end of this manual.
So you can see Mr. Ground Hog is about to have some problems if you can also call the wind and hold the target which brings us to the next subject, using the reticle to hold for wind.
How to Train at Range Estimation
Here are some pointers for increasing your range estimation skill:- Construct several targets of known dimension such as 1-yard square (the more the better) and number so that the number can be seen from a distance (the number should be about the size of the target)
- Place these targets out at various ranges ensuring that they can be seen from the start point if possible across varied terrain. The targets should be placed in locations that are accessible by vehicle to allow using the odometer. Do not determine range as you are emplacing the targets, which will only jade your efforts.
- Return to the start point and with a note pad number, the left side with the number of targets you have put out.
- Now, without aid look at the targets you have put out and estimate the range by eye. Write down this figure on your pad next to the corresponding target number. This will help you develop your "by eye" skills and assist you in estimating range by optics.
- After you have finished the "by eye" method, take up a stable shooting position with your UNLOADED rifle or mil dot equipped spotting scope.
- Using the above techniques, mil the targets writing down the mil reading after each corresponding number.
- Do the math or use the shooter aid to determine the range.
- Using the odometer (or other method such as laser range finder, map, etc) determine the actual range to the targets.
- Compare this to what you determined by eye and using mils.
- You can also do the same as above by leaving the targets in place and moving your position.
- You can also vary target size and using the calculations or shooter aid determine the range/s.
Wind Hold Offs
Holding off for wind although simple sounding is an extremely difficult proposition and next to range estimation the most difficult of all shooter SKILLS to master. We could devote pages to this issue and describe a variety of methods to determine wind, however this manual is about mils not wind calling. We cannot however talk about using mils to hold off winds without at least discussing winds a little.There are three components to calling wind, identifying the wind velocity in mph, identifying wind direction, and identifying wind value in minutes of angle or mils (derived from the speed). There are several ways to accomplish these three things;
WIND VELOCITY: Wind velocity is normally expressed in miles per hour (mph) or perhaps kilometers per hour (kph). Either way, wind has a speed that must be identified/recognized. There are two ways to determine wind; use of an instrument to measure it or by visual indicators. The next aspect is where to measure/read the wind; at the shooters position, mid range or at the target. Without getting too deep into this issue I will share how I do it and you can make up your own mind.
I use visual indicators (mirage and vegetation) to identify the wind velocity and direction. I do this because I am a tactical shooter and cannot afford to use an instrument at my position without compromising it. I look at the wind at mid range and at the target because this is where the bullet is under the most contact with the wind.
There are other sources that can give you what the value of mirage or waving vegetation is, therefore I will not go into it here suffice to say that like the rest of this issue PRACTICE, PRACTICE, PRACTICE are the keys to being able to identify and call the wind.
Once you have determined the wind speed and direction, you can give it a value in MOA or Mils. The moa or mil value is normally developed through the use of ballistic charts from a variety of sources (like Sierra Bullets http://www.sierrabullets.com/software/index.cfm). The value will be dependent of bullet weight, muzzle velocity, wind speed and range to target.
Most experienced shooters "SWAG" the wind and shoot, what they "feel" is right. By doing, this they develop experience in what a given wind is worth in mils or minutes (note: you need to build the experience from correct speeds and values, therefore you will have to measure it in the beginning). If you determine the wind in moa you must convert it to mils then hold that IN THE DIRECTION OF THE WIND. Of course, it is much easier to determine the wind in mils thus eliminating the need to convert. Wind in mils will normally be in quarters (1/4, ½, ¾, etc) keeping in mind that one-mil equals 3.375 or 3.438 moa depending on the reticle you are using.
Lets recap; if you are looking down range at a target located 300 yards from you and you determine there to be an 8 mph left to right wind present at the target. Consulting a handy wind chart you see that the wind is worth 2 moa. In order to figure out the mil hold off you have to determine what 2 moa is equates to in mils. Since there is 3.375 moa in a mil, 2 moa is 59% of a mil or just over a ½ mil hold TO THE LEFT. That is you place the center of the reticle ½ mil to the left of the target to compensate for the wind.
Training On Calling Wind
Like everything else, this requires practice, practice and more practice. Unlike range estimation, wind calling will require you to also shoot to confirm or deny your call. One way to gain experience is to attend competitions even as an observer and watch experienced shooter deal with the wind. There you can see calls (you will have to make some friends there first) and the results on the target. I should mention the use of so-called "Kentucky" windage, which is usually firing multiple rounds until a hit is obtained. This may be applicable for some of you. In order to develop a skill at calling wind, you must start using known wind, for this an anemometer (wind meter) is needed. Look at the wind, make a guess and then measure it. Over time, your skill will increase to the point that you will become accurate.Moving Targets
Some of you will use the mil dot reticle to engage moving targets. This is an extremely difficult task not to mention hard to practice. Professional shooters will use known distance ranges with moving targets to practice this skill.There are three levels of movers; walkers, fast walk or slow run (trot) and run. You notice that I have not listed "dead sprint" or fast run, this is because engaging targets at these speeds is beyond the scope of most shooters and should not be attempted unless you are extremely skilled. Of the three speeds, you can of course further sub-divide them but you only make it harder to identify. Like wind, you must be able to determine target speed from which you can determine a "lead". A lead will be determined by not only target speed but also range to the target and caliber being used. You can mathematically calculate a lead by using a good ballistics program like that offered by Sierra Bullets to determine the "Time Of Flight" of a given projectile/caliber for a given distance. You might want to take a look at the delivered energy at that range to see where your limits should be with reference to the ability to drop the target. Once you have the TOF and range you then factor in rifle lock time and target speed to arrive at a lead.
The math that is involved here is pretty simple, but requires a little "computing". Say we are looking at a walking Deer. Lets say that the deer moves at 2 mph; seeing as how there are 5280 feet in 1 mile, therefore there are 10560 feet in 2 miles, divide this by 60 (60 minutes in an hour) and we arrive at 176 feet in a minute, divided by 60 (60 seconds in a minute) and we arrive at 2.93 feet per second. We are shooting a .308 Winchester from 300 yards using 168 grain Match King (I know it is not a preferred hunting bullet) with a muzzle velocity of 2650 feet per second and a TOF of .382677903 seconds (to travel the 300 yards). We are shooting a Remington 700 BDL with a lock time (time it takes the firing pin to hit and ignite the primer) of .003 seconds. Therefore, we add the lock time to the TOF to arrive at a total time from trigger being pulled until the bullet impacts at the target area equals .3856779 seconds (TOF plus lock time).
We now have to figure out how far our target will move in the amount of time it takes for the bullet to get there. As we said the deer is moving at a speed of 2.93 fps divided by 12 gives us 35.16 inches per second. Taking this number we multiply the Total Time of Flight (TTOF) to arrive at a distance of 13.5 inches, or better said the deer will move 13.5 inches in the time it takes the bullet to reach him. 13.5 inches equals 4.5 minutes of angle at 300 yards (1 moa @ 300 yards equals 3 inches). With the given 3.375 minutes of angle to one Mil, we now arrive at a hold of 1.3 mils but since 1.3 Mil is not in the reticle, we have to use 1.25 or 1 ¼ Mils. Here it is graphically;How to Train
As noted in the beginning of this section this skill is extremely difficult to train. However, if you have the means or devise some way of making a moving target in an area where you can train you should do so at every opportunity. Here are some pointers;- Start with known target speed, preferably slow and build speed as skill increases. Do not increase target speed until you can hit them 90% or better all of the time.
- Use a target size that at a minimum replicates the kill zone of your intended target. In the beginning, a larger target should be used to show hits to allow you to adjust your leads/actions.
- Begin training at close ranges, i.e. 50 yards. Work your way back as your skill increases.
- You should use a partner positioned slightly behind your shoulder of your shooting side with a spotting scope that is as close to the line of bore as possible. He should look for bullet trace (vapor trail of the bullet) and provide you with feedback as to where the bullet is going.
Mil Dot Illustrations and Explanations
Cara Menggunakan Scopes Mildot
User Guide
This guide is intended to provide the user of a Mil-Dot equipped optic with information on what the reticle is used for, the basics of its use and how to train yourself to better employ and realize the full potential of this reticle.How to use Mil-Dots
I am sure that most of you have skipped right to this page, as you want to jump ahead and get to using the optic. I have to HIGHLY recommend that you at least look at the diagrams and values associated with the reticle patterns listed under specifications. All right then, lets get to it. The vast majority of users will employ the optic primarily to estimate range, some will also use it to hold for wind and some will use it to calculate and hold leads on moving targets. I will address the latter two uses further into this instruction.Range Estimation
There are two components to range estimation; the mechanics and the math. The mechanics encompass the physical methods of placing the reticle on the target and reading the reticle. The math is taking the "mils read" and converting it to a usable range.The Mechanics
This is definitely the hardest part of range estimation using the mil dot reticle. It requires the shooter/use to place the reticle on the target (of known size), hold it long enough to accurately read it (depending how accurate you are trying to be to the nearest .1 mil).The MOST important aspect of using the mil dot reticle for range estimation is a STEADY HOLD on the target. As you use the reticle, you will realize just how hard it really is to hold the reticle on the target. Most shooters will tend to move the reticle in the direction that they are reading, however many shooters will do the opposite. The shooter must practice shooting positions to determine what is best. All but the best shooters are able to hold a rifle/optic steady enough without a rest or support to accurately read the reticle. Shooters should ALWAYS seek to use some form of rest, bipod, sling etc. to develop a STABLE, DURABLE, and SUSTAINABLE shooting platform. When attempting to estimate range of living (for now) objects, it is imperative that the shooter be practiced and be able to read the scale quickly and accurately because they never stay in one place very long so. In order to develop this skill the shooter must practice, practice and practice (we will cover practice techniques later) using the reticle against targets at different ranges and of different sizes. Additionally the shooter should try all of the methods to determine which he/she prefers and the advantages/disadvantages of each.
Reading the Reticle
In order to use the reticle you must be able to read it. As mentioned elsewhere in this manual you must be able to read the reticle to the nearest .1 mil. Please refer to the diagrams depicted in SPECIFICATIONS for a break down of the specific reticles. Here is a generic break down of a mil dot reticle:The picture is not to scale but provided to illuminate the discussion. Notice that what is depicted is not to the nearest .1 mil. To do so to scale the drawing would be too crowded to be useful. As depicted the .25, .5 and .75 mil are usually easy to find, the user must find the .3, .4, .6, etc locations. Keep in mind that although there is not an exact point annotated on the reticle, it behooves the shooter to learn to "guesstimate" where these points on the reticle are to lessen the range estimation error.Regardless of which method you are going to use, you MUST know the target size (you will see this again). For the sake of this document, we will use the following;
You will notice that Gordy the Ground Hog is 10 inches tall when he stands, which in your world is the average ground hog height.
Once you have the target size you have to decide on which method to use in order to obtain a mil reading. Here are some of the more popular methods;
Cross Hair Method
As the name applies, this method uses the center of the cross hair placed at a point on the target then the reticle is read up, down, left or right. Keep in mind that the cross hair can be placed on any point and the target and mils read from there. This is the most widely used method because it is the most natural, placing the cross hairs on the target.Heavy Post Method
Similar to the cross hair method, the heavy post located on any of the four sides (top, bottom, left and right) is placed onto a base line and then mils read from there. The benefit of this method is that the heavy post is easier for most people to hold on a distant target (especially older shooters).Mil-Dot Method
Again, like the other two methods, a distinct aiming point is placed on the target and mils read from there. In this case, a dot is use verses the cross hair or a heavy post. This method is favored by some because the dots are easy to place on the target and for some easier to hold. One thing to keep in mind is that you are already into the mil scale when you place the reticle on the target and you must factor this into your calculations. Again remember, you MUST begin reading at the BASE DOT or factor its value is you begin elsewhere (i.e. if you begin reading from the top of the post as depicted above the reading would be 3.4 mils verses if you begin at the base dot which would be 2.4 mil and would be CORRECT).The Math
There are two ways that you can derive range using a mil dot equipped optic, to manually compute it either by long hand or by using an electronic calculator OR to use one of several shooter aids that are on the market. The most notable shooter aid available is the Mil Dot Master™ a slide rule type device, which provides the shooter with the ability to line up "mils read" with the target size in inches and gives you the range to the target. The other "device" is what is termed a "cheat sheet" and resembles a spreadsheet depicting mils read on normally the left side and target sizes across the top. By intersecting the two, you arrive at the range to the target.While these devices are definitely handy, anyone using this reticle should know the math associated with it so that when they forget the device or cheat sheet they can still use the reticle to its maximum ability. Therefore, we will begin with the math (long way) of doing this.
Calculations
Using a mil dot reticle is a mathematical proposition requiring some calculating in order to arrive at a solution. For range estimation problems there are three components; target size (Tz), mils read (m) and range (R). You MUST have two of the three to arrive at the third component. Most commonly, the shooter will know the target size and by using the reticle will arrive at mils read, here are the formulas;Target size (in yards) x 1000 / Mils read = yards to target
Target size (in meters) x 1000 / Mils read = meters to targetIn short: Tz / R = m
I am sure you notice that target size is required in yards or meters. Most of the time you know your target in inches (varmints), therefore the below formulas will help you convert and arrive at a usable range. The first formula for each is the easiest but not the most precise. Try them all out and decide for yourself what is best;
I am sure you notice that target size is required in yards or meters. Most of the time you know your target in inches (varmints), therefore the below formulas will help you convert and arrive at a usable range. The first formula for each is the easiest but not the most precise. Try them all out and decide for yourself what is best;
For Meters:
- Object size (in) divided by 39 x 1000 divided by mils read
- Object size (in) x 25.4 divided by mils read
- Object size (in) divided by 36 x 1000 divided by mils read
- Object size (in) x 27.77 divided by mils read
- 10 inches divided by 36 x 1000 divided by .6 equals 462 yards OR
- 10 inches x 27.77 divided by .6 equals 462 yards OR
- 10 inches divided by 39 x 1000 divided by .6 equals 427 meters OR
- 10 inches x 25.4 divided by .6 equals 423 meters
Shooter Aids
As mentioned above, you can also enlist the help of a shooter aid such as the Mil Dot Master™ (MDM) that will take the math out of this effort and provide you with an quick firing solution. The MDM is easy to use and will offer the shooter with more options than most will ever need (such as slant range corrections). For those interested in the MDM, I encourage you to visit their web site at www.mildot.com where you can use a virtual example. One lat word on the MDM, you MUST read the instructions and understand them for it to work, it is NOT magic and will not do all the work for you.Another form of shooter aide is what is termed a "cheat sheet". This is a spreadsheet like form that shows mils read on one side and target size across the top. This is a simplified version of the MDM but does not require any sliding or moving of anything. Down side is that it only does one thing, provide range from target size and mils read. I will provide a larger version of this diagram at the end of this manual.
So you can see Mr. Ground Hog is about to have some problems if you can also call the wind and hold the target which brings us to the next subject, using the reticle to hold for wind.
How to Train at Range Estimation
Here are some pointers for increasing your range estimation skill:- Construct several targets of known dimension such as 1-yard square (the more the better) and number so that the number can be seen from a distance (the number should be about the size of the target)
- Place these targets out at various ranges ensuring that they can be seen from the start point if possible across varied terrain. The targets should be placed in locations that are accessible by vehicle to allow using the odometer. Do not determine range as you are emplacing the targets, which will only jade your efforts.
- Return to the start point and with a note pad number, the left side with the number of targets you have put out.
- Now, without aid look at the targets you have put out and estimate the range by eye. Write down this figure on your pad next to the corresponding target number. This will help you develop your "by eye" skills and assist you in estimating range by optics.
- After you have finished the "by eye" method, take up a stable shooting position with your UNLOADED rifle or mil dot equipped spotting scope.
- Using the above techniques, mil the targets writing down the mil reading after each corresponding number.
- Do the math or use the shooter aid to determine the range.
- Using the odometer (or other method such as laser range finder, map, etc) determine the actual range to the targets.
- Compare this to what you determined by eye and using mils.
- You can also do the same as above by leaving the targets in place and moving your position.
- You can also vary target size and using the calculations or shooter aid determine the range/s.
Wind Hold Offs
Holding off for wind although simple sounding is an extremely difficult proposition and next to range estimation the most difficult of all shooter SKILLS to master. We could devote pages to this issue and describe a variety of methods to determine wind, however this manual is about mils not wind calling. We cannot however talk about using mils to hold off winds without at least discussing winds a little.There are three components to calling wind, identifying the wind velocity in mph, identifying wind direction, and identifying wind value in minutes of angle or mils (derived from the speed). There are several ways to accomplish these three things;
WIND VELOCITY: Wind velocity is normally expressed in miles per hour (mph) or perhaps kilometers per hour (kph). Either way, wind has a speed that must be identified/recognized. There are two ways to determine wind; use of an instrument to measure it or by visual indicators. The next aspect is where to measure/read the wind; at the shooters position, mid range or at the target. Without getting too deep into this issue I will share how I do it and you can make up your own mind.
I use visual indicators (mirage and vegetation) to identify the wind velocity and direction. I do this because I am a tactical shooter and cannot afford to use an instrument at my position without compromising it. I look at the wind at mid range and at the target because this is where the bullet is under the most contact with the wind.
There are other sources that can give you what the value of mirage or waving vegetation is, therefore I will not go into it here suffice to say that like the rest of this issue PRACTICE, PRACTICE, PRACTICE are the keys to being able to identify and call the wind.
Once you have determined the wind speed and direction, you can give it a value in MOA or Mils. The moa or mil value is normally developed through the use of ballistic charts from a variety of sources (like Sierra Bullets http://www.sierrabullets.com/software/index.cfm). The value will be dependent of bullet weight, muzzle velocity, wind speed and range to target.
Most experienced shooters "SWAG" the wind and shoot, what they "feel" is right. By doing, this they develop experience in what a given wind is worth in mils or minutes (note: you need to build the experience from correct speeds and values, therefore you will have to measure it in the beginning). If you determine the wind in moa you must convert it to mils then hold that IN THE DIRECTION OF THE WIND. Of course, it is much easier to determine the wind in mils thus eliminating the need to convert. Wind in mils will normally be in quarters (1/4, ½, ¾, etc) keeping in mind that one-mil equals 3.375 or 3.438 moa depending on the reticle you are using.
Lets recap; if you are looking down range at a target located 300 yards from you and you determine there to be an 8 mph left to right wind present at the target. Consulting a handy wind chart you see that the wind is worth 2 moa. In order to figure out the mil hold off you have to determine what 2 moa is equates to in mils. Since there is 3.375 moa in a mil, 2 moa is 59% of a mil or just over a ½ mil hold TO THE LEFT. That is you place the center of the reticle ½ mil to the left of the target to compensate for the wind.
Training On Calling Wind
Like everything else, this requires practice, practice and more practice. Unlike range estimation, wind calling will require you to also shoot to confirm or deny your call. One way to gain experience is to attend competitions even as an observer and watch experienced shooter deal with the wind. There you can see calls (you will have to make some friends there first) and the results on the target. I should mention the use of so-called "Kentucky" windage, which is usually firing multiple rounds until a hit is obtained. This may be applicable for some of you. In order to develop a skill at calling wind, you must start using known wind, for this an anemometer (wind meter) is needed. Look at the wind, make a guess and then measure it. Over time, your skill will increase to the point that you will become accurate.Moving Targets
Some of you will use the mil dot reticle to engage moving targets. This is an extremely difficult task not to mention hard to practice. Professional shooters will use known distance ranges with moving targets to practice this skill.There are three levels of movers; walkers, fast walk or slow run (trot) and run. You notice that I have not listed "dead sprint" or fast run, this is because engaging targets at these speeds is beyond the scope of most shooters and should not be attempted unless you are extremely skilled. Of the three speeds, you can of course further sub-divide them but you only make it harder to identify. Like wind, you must be able to determine target speed from which you can determine a "lead". A lead will be determined by not only target speed but also range to the target and caliber being used. You can mathematically calculate a lead by using a good ballistics program like that offered by Sierra Bullets to determine the "Time Of Flight" of a given projectile/caliber for a given distance. You might want to take a look at the delivered energy at that range to see where your limits should be with reference to the ability to drop the target. Once you have the TOF and range you then factor in rifle lock time and target speed to arrive at a lead.
The math that is involved here is pretty simple, but requires a little "computing". Say we are looking at a walking Deer. Lets say that the deer moves at 2 mph; seeing as how there are 5280 feet in 1 mile, therefore there are 10560 feet in 2 miles, divide this by 60 (60 minutes in an hour) and we arrive at 176 feet in a minute, divided by 60 (60 seconds in a minute) and we arrive at 2.93 feet per second. We are shooting a .308 Winchester from 300 yards using 168 grain Match King (I know it is not a preferred hunting bullet) with a muzzle velocity of 2650 feet per second and a TOF of .382677903 seconds (to travel the 300 yards). We are shooting a Remington 700 BDL with a lock time (time it takes the firing pin to hit and ignite the primer) of .003 seconds. Therefore, we add the lock time to the TOF to arrive at a total time from trigger being pulled until the bullet impacts at the target area equals .3856779 seconds (TOF plus lock time).
We now have to figure out how far our target will move in the amount of time it takes for the bullet to get there. As we said the deer is moving at a speed of 2.93 fps divided by 12 gives us 35.16 inches per second. Taking this number we multiply the Total Time of Flight (TTOF) to arrive at a distance of 13.5 inches, or better said the deer will move 13.5 inches in the time it takes the bullet to reach him. 13.5 inches equals 4.5 minutes of angle at 300 yards (1 moa @ 300 yards equals 3 inches). With the given 3.375 minutes of angle to one Mil, we now arrive at a hold of 1.3 mils but since 1.3 Mil is not in the reticle, we have to use 1.25 or 1 ¼ Mils. Here it is graphically;How to Train
As noted in the beginning of this section this skill is extremely difficult to train. However, if you have the means or devise some way of making a moving target in an area where you can train you should do so at every opportunity. Here are some pointers;- Start with known target speed, preferably slow and build speed as skill increases. Do not increase target speed until you can hit them 90% or better all of the time.
- Use a target size that at a minimum replicates the kill zone of your intended target. In the beginning, a larger target should be used to show hits to allow you to adjust your leads/actions.
- Begin training at close ranges, i.e. 50 yards. Work your way back as your skill increases.
- You should use a partner positioned slightly behind your shoulder of your shooting side with a spotting scope that is as close to the line of bore as possible. He should look for bullet trace (vapor trail of the bullet) and provide you with feedback as to where the bullet is going.
Mil Dot Illustrations and Explanations
Cara Menggunakan Scopes Mildot
User Guide
This guide is intended to provide the user of a Mil-Dot equipped optic with information on what the reticle is used for, the basics of its use and how to train yourself to better employ and realize the full potential of this reticle.How to use Mil-Dots
I am sure that most of you have skipped right to this page, as you want to jump ahead and get to using the optic. I have to HIGHLY recommend that you at least look at the diagrams and values associated with the reticle patterns listed under specifications. All right then, lets get to it. The vast majority of users will employ the optic primarily to estimate range, some will also use it to hold for wind and some will use it to calculate and hold leads on moving targets. I will address the latter two uses further into this instruction.Range Estimation
There are two components to range estimation; the mechanics and the math. The mechanics encompass the physical methods of placing the reticle on the target and reading the reticle. The math is taking the "mils read" and converting it to a usable range.The Mechanics
This is definitely the hardest part of range estimation using the mil dot reticle. It requires the shooter/use to place the reticle on the target (of known size), hold it long enough to accurately read it (depending how accurate you are trying to be to the nearest .1 mil).
The MOST important aspect of using the mil dot reticle for range estimation is a STEADY HOLD on the target. As you use the reticle, you will realize just how hard it really is to hold the reticle on the target. Most shooters will tend to move the reticle in the direction that they are reading, however many shooters will do the opposite. The shooter must practice shooting positions to determine what is best. All but the best shooters are able to hold a rifle/optic steady enough without a rest or support to accurately read the reticle. Shooters should ALWAYS seek to use some form of rest, bipod, sling etc. to develop a STABLE, DURABLE, and SUSTAINABLE shooting platform. When attempting to estimate range of living (for now) objects, it is imperative that the shooter be practiced and be able to read the scale quickly and accurately because they never stay in one place very long so. In order to develop this skill the shooter must practice, practice and practice (we will cover practice techniques later) using the reticle against targets at different ranges and of different sizes. Additionally the shooter should try all of the methods to determine which he/she prefers and the advantages/disadvantages of each.
Reading the Reticle
In order to use the reticle you must be able to read it. As mentioned elsewhere in this manual you must be able to read the reticle to the nearest .1 mil. Please refer to the diagrams depicted in SPECIFICATIONS for a break down of the specific reticles. Here is a generic break down of a mil dot reticle:
The picture is not to scale but provided to illuminate the discussion. Notice that what is depicted is not to the nearest .1 mil. To do so to scale the drawing would be too crowded to be useful. As depicted the .25, .5 and .75 mil are usually easy to find, the user must find the .3, .4, .6, etc locations. Keep in mind that although there is not an exact point annotated on the reticle, it behooves the shooter to learn to "guesstimate" where these points on the reticle are to lessen the range estimation error.Regardless of which method you are going to use, you MUST know the target size (you will see this again). For the sake of this document, we will use the following;
You will notice that Gordy the Ground Hog is 10 inches tall when he stands, which in your world is the average ground hog height.
Once you have the target size you have to decide on which method to use in order to obtain a mil reading. Here are some of the more popular methods;
Cross Hair Method
As the name applies, this method uses the center of the cross hair placed at a point on the target then the reticle is read up, down, left or right. Keep in mind that the cross hair can be placed on any point and the target and mils read from there. This is the most widely used method because it is the most natural, placing the cross hairs on the target.Heavy Post Method
Similar to the cross hair method, the heavy post located on any of the four sides (top, bottom, left and right) is placed onto a base line and then mils read from there. The benefit of this method is that the heavy post is easier for most people to hold on a distant target (especially older shooters).Mil-Dot Method
Again, like the other two methods, a distinct aiming point is placed on the target and mils read from there. In this case, a dot is use verses the cross hair or a heavy post. This method is favored by some because the dots are easy to place on the target and for some easier to hold. One thing to keep in mind is that you are already into the mil scale when you place the reticle on the target and you must factor this into your calculations. Again remember, you MUST begin reading at the BASE DOT or factor its value is you begin elsewhere (i.e. if you begin reading from the top of the post as depicted above the reading would be 3.4 mils verses if you begin at the base dot which would be 2.4 mil and would be CORRECT).The Math
There are two ways that you can derive range using a mil dot equipped optic, to manually compute it either by long hand or by using an electronic calculator OR to use one of several shooter aids that are on the market. The most notable shooter aid available is the Mil Dot Master™ a slide rule type device, which provides the shooter with the ability to line up "mils read" with the target size in inches and gives you the range to the target. The other "device" is what is termed a "cheat sheet" and resembles a spreadsheet depicting mils read on normally the left side and target sizes across the top. By intersecting the two, you arrive at the range to the target.While these devices are definitely handy, anyone using this reticle should know the math associated with it so that when they forget the device or cheat sheet they can still use the reticle to its maximum ability. Therefore, we will begin with the math (long way) of doing this.
Calculations
Using a mil dot reticle is a mathematical proposition requiring some calculating in order to arrive at a solution. For range estimation problems there are three components; target size (Tz), mils read (m) and range (R). You MUST have two of the three to arrive at the third component. Most commonly, the shooter will know the target size and by using the reticle will arrive at mils read, here are the formulas;Target size (in yards) x 1000 / Mils read = yards to target
Target size (in meters) x 1000 / Mils read = meters to targetIn short: Tz / R = m
I am sure you notice that target size is required in yards or meters. Most of the time you know your target in inches (varmints), therefore the below formulas will help you convert and arrive at a usable range. The first formula for each is the easiest but not the most precise. Try them all out and decide for yourself what is best;
I am sure you notice that target size is required in yards or meters. Most of the time you know your target in inches (varmints), therefore the below formulas will help you convert and arrive at a usable range. The first formula for each is the easiest but not the most precise. Try them all out and decide for yourself what is best;
For Meters:
- Object size (in) divided by 39 x 1000 divided by mils read
- Object size (in) x 25.4 divided by mils read
- Object size (in) divided by 36 x 1000 divided by mils read
- Object size (in) x 27.77 divided by mils read
- 10 inches divided by 36 x 1000 divided by .6 equals 462 yards OR
- 10 inches x 27.77 divided by .6 equals 462 yards OR
- 10 inches divided by 39 x 1000 divided by .6 equals 427 meters OR
- 10 inches x 25.4 divided by .6 equals 423 meters
Shooter Aids
As mentioned above, you can also enlist the help of a shooter aid such as the Mil Dot Master™ (MDM) that will take the math out of this effort and provide you with an quick firing solution. The MDM is easy to use and will offer the shooter with more options than most will ever need (such as slant range corrections). For those interested in the MDM, I encourage you to visit their web site at www.mildot.com where you can use a virtual example. One lat word on the MDM, you MUST read the instructions and understand them for it to work, it is NOT magic and will not do all the work for you.Another form of shooter aide is what is termed a "cheat sheet". This is a spreadsheet like form that shows mils read on one side and target size across the top. This is a simplified version of the MDM but does not require any sliding or moving of anything. Down side is that it only does one thing, provide range from target size and mils read. I will provide a larger version of this diagram at the end of this manual.
So you can see Mr. Ground Hog is about to have some problems if you can also call the wind and hold the target which brings us to the next subject, using the reticle to hold for wind.
How to Train at Range Estimation
Here are some pointers for increasing your range estimation skill:- Construct several targets of known dimension such as 1-yard square (the more the better) and number so that the number can be seen from a distance (the number should be about the size of the target)
- Place these targets out at various ranges ensuring that they can be seen from the start point if possible across varied terrain. The targets should be placed in locations that are accessible by vehicle to allow using the odometer. Do not determine range as you are emplacing the targets, which will only jade your efforts.
- Return to the start point and with a note pad number, the left side with the number of targets you have put out.
- Now, without aid look at the targets you have put out and estimate the range by eye. Write down this figure on your pad next to the corresponding target number. This will help you develop your "by eye" skills and assist you in estimating range by optics.
- After you have finished the "by eye" method, take up a stable shooting position with your UNLOADED rifle or mil dot equipped spotting scope.
- Using the above techniques, mil the targets writing down the mil reading after each corresponding number.
- Do the math or use the shooter aid to determine the range.
- Using the odometer (or other method such as laser range finder, map, etc) determine the actual range to the targets.
- Compare this to what you determined by eye and using mils.
- You can also do the same as above by leaving the targets in place and moving your position.
- You can also vary target size and using the calculations or shooter aid determine the range/s.
Wind Hold Offs
Holding off for wind although simple sounding is an extremely difficult proposition and next to range estimation the most difficult of all shooter SKILLS to master. We could devote pages to this issue and describe a variety of methods to determine wind, however this manual is about mils not wind calling. We cannot however talk about using mils to hold off winds without at least discussing winds a little.There are three components to calling wind, identifying the wind velocity in mph, identifying wind direction, and identifying wind value in minutes of angle or mils (derived from the speed). There are several ways to accomplish these three things;
WIND VELOCITY: Wind velocity is normally expressed in miles per hour (mph) or perhaps kilometers per hour (kph). Either way, wind has a speed that must be identified/recognized. There are two ways to determine wind; use of an instrument to measure it or by visual indicators. The next aspect is where to measure/read the wind; at the shooters position, mid range or at the target. Without getting too deep into this issue I will share how I do it and you can make up your own mind.
I use visual indicators (mirage and vegetation) to identify the wind velocity and direction. I do this because I am a tactical shooter and cannot afford to use an instrument at my position without compromising it. I look at the wind at mid range and at the target because this is where the bullet is under the most contact with the wind.
There are other sources that can give you what the value of mirage or waving vegetation is, therefore I will not go into it here suffice to say that like the rest of this issue PRACTICE, PRACTICE, PRACTICE are the keys to being able to identify and call the wind.
Once you have determined the wind speed and direction, you can give it a value in MOA or Mils. The moa or mil value is normally developed through the use of ballistic charts from a variety of sources (like Sierra Bullets http://www.sierrabullets.com/software/index.cfm). The value will be dependent of bullet weight, muzzle velocity, wind speed and range to target.
Most experienced shooters "SWAG" the wind and shoot, what they "feel" is right. By doing, this they develop experience in what a given wind is worth in mils or minutes (note: you need to build the experience from correct speeds and values, therefore you will have to measure it in the beginning). If you determine the wind in moa you must convert it to mils then hold that IN THE DIRECTION OF THE WIND. Of course, it is much easier to determine the wind in mils thus eliminating the need to convert. Wind in mils will normally be in quarters (1/4, ½, ¾, etc) keeping in mind that one-mil equals 3.375 or 3.438 moa depending on the reticle you are using.
Lets recap; if you are looking down range at a target located 300 yards from you and you determine there to be an 8 mph left to right wind present at the target. Consulting a handy wind chart you see that the wind is worth 2 moa. In order to figure out the mil hold off you have to determine what 2 moa is equates to in mils. Since there is 3.375 moa in a mil, 2 moa is 59% of a mil or just over a ½ mil hold TO THE LEFT. That is you place the center of the reticle ½ mil to the left of the target to compensate for the wind.
Training On Calling Wind
Like everything else, this requires practice, practice and more practice. Unlike range estimation, wind calling will require you to also shoot to confirm or deny your call. One way to gain experience is to attend competitions even as an observer and watch experienced shooter deal with the wind. There you can see calls (you will have to make some friends there first) and the results on the target. I should mention the use of so-called "Kentucky" windage, which is usually firing multiple rounds until a hit is obtained. This may be applicable for some of you. In order to develop a skill at calling wind, you must start using known wind, for this an anemometer (wind meter) is needed. Look at the wind, make a guess and then measure it. Over time, your skill will increase to the point that you will become accurate.Moving Targets
Some of you will use the mil dot reticle to engage moving targets. This is an extremely difficult task not to mention hard to practice. Professional shooters will use known distance ranges with moving targets to practice this skill.There are three levels of movers; walkers, fast walk or slow run (trot) and run. You notice that I have not listed "dead sprint" or fast run, this is because engaging targets at these speeds is beyond the scope of most shooters and should not be attempted unless you are extremely skilled. Of the three speeds, you can of course further sub-divide them but you only make it harder to identify. Like wind, you must be able to determine target speed from which you can determine a "lead". A lead will be determined by not only target speed but also range to the target and caliber being used. You can mathematically calculate a lead by using a good ballistics program like that offered by Sierra Bullets to determine the "Time Of Flight" of a given projectile/caliber for a given distance. You might want to take a look at the delivered energy at that range to see where your limits should be with reference to the ability to drop the target. Once you have the TOF and range you then factor in rifle lock time and target speed to arrive at a lead.
The math that is involved here is pretty simple, but requires a little "computing". Say we are looking at a walking Deer. Lets say that the deer moves at 2 mph; seeing as how there are 5280 feet in 1 mile, therefore there are 10560 feet in 2 miles, divide this by 60 (60 minutes in an hour) and we arrive at 176 feet in a minute, divided by 60 (60 seconds in a minute) and we arrive at 2.93 feet per second. We are shooting a .308 Winchester from 300 yards using 168 grain Match King (I know it is not a preferred hunting bullet) with a muzzle velocity of 2650 feet per second and a TOF of .382677903 seconds (to travel the 300 yards). We are shooting a Remington 700 BDL with a lock time (time it takes the firing pin to hit and ignite the primer) of .003 seconds. Therefore, we add the lock time to the TOF to arrive at a total time from trigger being pulled until the bullet impacts at the target area equals .3856779 seconds (TOF plus lock time).
We now have to figure out how far our target will move in the amount of time it takes for the bullet to get there. As we said the deer is moving at a speed of 2.93 fps divided by 12 gives us 35.16 inches per second. Taking this number we multiply the Total Time of Flight (TTOF) to arrive at a distance of 13.5 inches, or better said the deer will move 13.5 inches in the time it takes the bullet to reach him. 13.5 inches equals 4.5 minutes of angle at 300 yards (1 moa @ 300 yards equals 3 inches). With the given 3.375 minutes of angle to one Mil, we now arrive at a hold of 1.3 mils but since 1.3 Mil is not in the reticle, we have to use 1.25 or 1 ¼ Mils. Here it is graphically;How to Train
As noted in the beginning of this section this skill is extremely difficult to train. However, if you have the means or devise some way of making a moving target in an area where you can train you should do so at every opportunity. Here are some pointers;- Start with known target speed, preferably slow and build speed as skill increases. Do not increase target speed until you can hit them 90% or better all of the time.
- Use a target size that at a minimum replicates the kill zone of your intended target. In the beginning, a larger target should be used to show hits to allow you to adjust your leads/actions.
- Begin training at close ranges, i.e. 50 yards. Work your way back as your skill increases.
- You should use a partner positioned slightly behind your shoulder of your shooting side with a spotting scope that is as close to the line of bore as possible. He should look for bullet trace (vapor trail of the bullet) and provide you with feedback as to where the bullet is going.
Mil Dot Illustrations and Explanations
Langganan:
Postingan (Atom)
LinkWithin
WWW.SENAPANANGIN.US
MENJUAL SENAPAN ANGIN MURAH - BUSUR PANAH - PERLENGKAPAN OUTDOR - SPAREPART - ACCESORIES - TERBARU - TERLENGKAP - TERPERCAYA - KIRIM KE SELURUH INDONESIA
